DKA VERTICAL TYPE SINLGE FACER
Inner Vacuum Structure
Vertical Cassette Type Single Facer
15 mins Change Flutes, Full Hydraulic Driving System
Valid width: 1600mm-2800mm
Design speed: 200M/min-350M/min
Corrugation Type: 3Py, 5Ply, 7Ply Production Line
Flute type: A, C, B, E, F, G Flute
Cotrol System: DCS Intelligent Control System
1). Design speed: 200-350m / min

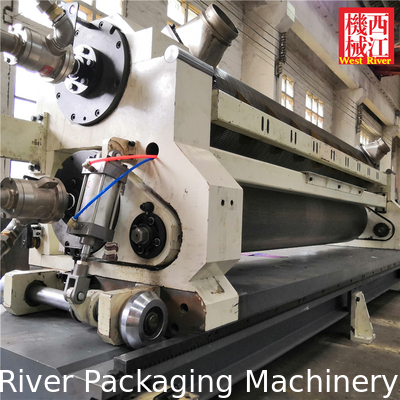

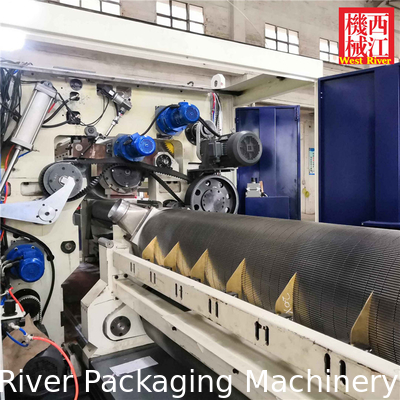

2). The diameter of the corrugated roller is Φ 360mm, Φ 430mm, Φ 460mm, the diameter of the pressure roller is Φ 500mm, the diameter of the glue roller is 315 mm, and the diameter of the even roller is 180mm.
3). Corrugated roller eccentric fine adjustment function.
4). Cassette type rollers change, Italian hydraulic motor drive, quick plug-in steam structure, 15 minutes to complete the corrugated roll change.
5). The gap between the pressure roller and the corrugated roller is adjusted by the independent servo push rod at both ends, and the gap is automatically adjusted by changing the corrugated type.
Fully Automatic Control
Intelligent Control Steam System
Automatic Steam Plug-in While Change Flutes
Multi Point Inner Vacuum Structure
Industrial 4.0 Design Solution
Active Paper Detection Technology
DCS Intelligent Electrical Control System...
Guangdong Zhaoqing WEST RIVER Packaging Machinery Co., Ltd.
As the first professional company engaged in corrugated cardboard and carton machinery in China, it was founded in 1954. Since 1978, it has manufactured the first semi-auto corrugated machinery in China. And from 1999, we began to cooperate with famous Germany company to produce High-speed Fully automatic corrugated cardboard production line for Asian Market. Its vision is to create customized solutions for customers around the world through the continuous efforts of our team and to achieve the sustainable development of Century Old Company.
It can provide a full range of products of corrugated board production line manufacturing. From 2Ply single face, 3Ply single wall, 5Ply double wall to 7Ply to 9Ply heavy package Automatic Corrugated Cardboard Production Line, Fully Automatic Corrugated Cardboard Production Line, And Newest AI control technology, colorful flexo printing, pre-printed cardboard production line development, with more than 60 years of technique accumulation, the company already has a supermarket-scale technique development for the field of corrugated board packaging machinery.
All along time, the company has a good reputation in the global market, already establish its famous brand under the name of " WEST RIVER ", the River flows through the City of where its Manufacturing Base located. Through our excellent technical strength, high-quality equipment and perfect after-sales service, we have helped our customers to realize the production and sales of high-quality cardboard. At the same time, our long-term in-depth practice in the Chinese market has made us better understand the quality problems of paper, qualify of employees, equipment maintanance, factory management and marketing sales faced by developing countries, helped customers win competition advantages in developed countries by customized deisgn solution. And through our technical accumulation, we have helped our customers realize the Chinese production and management mode of low cost and high quality products manufacturing.
Over the years, through the grafting practice of the Chinese model in the international market, we have won wide praise from our customers and achieved long-term development and cooperation with our partners. Thus we has comprehensive technical strength to help customers achieve long-term sustainable project development, we hope that the ultimate goal is to help customers establish a high-quality model project of China's rapid development mode!
We can provide comprehensive factory planning and design solutions, equipment manufacturing, installation and debugging, as well as technical personnel training for not matter of NEW TURN-KEY Project Design or Old Factory Upgradation Solutions. We can achieve customer's long-term and sustainable development through our professional technology! In order to provide you with more accurate equipment solution and quotation, please send us your specific requirements of the equipment or investment requirements, we will provide you full corrugation industrial design solution for you and all the in-depth technique consultation.
